One Pro

Infinite. Flexible. Reliable.

The iFactory3D printer One Pro revolutionizes additive manufacturing via 3D belt printing – from the individual small series to endless printing in industrial standards.

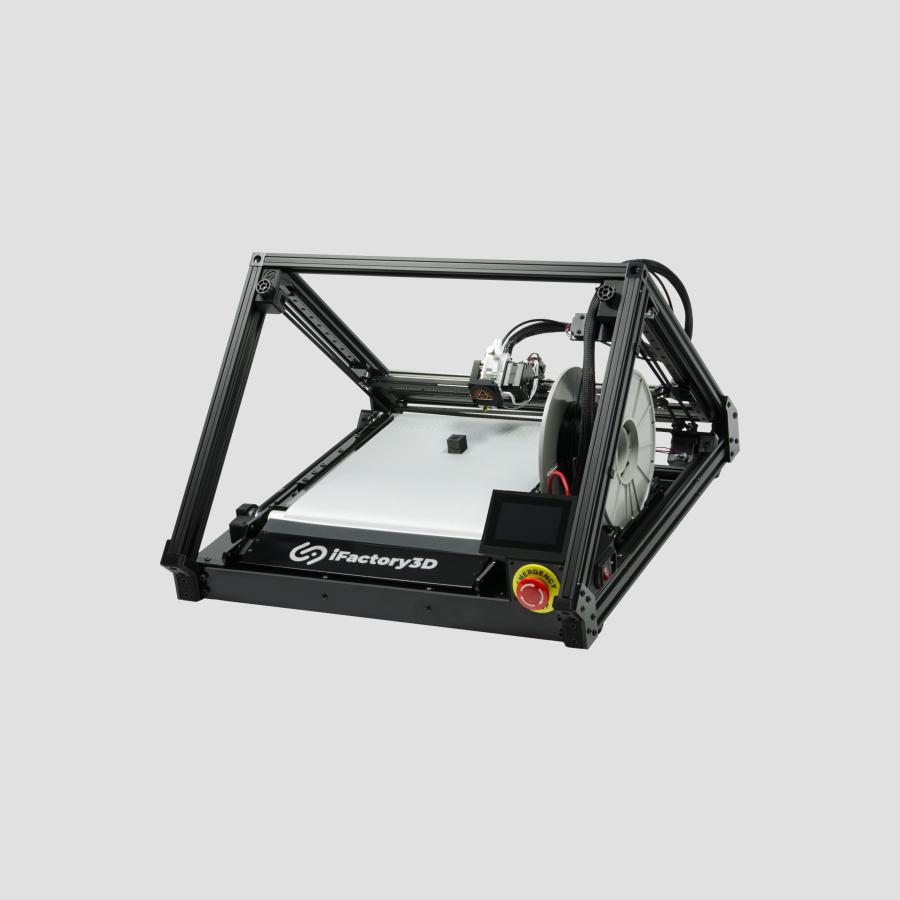

3D conveyor belt printer ONE PRO with pyramid-like structure, black frame and silver print bed; black filament spool in the build area, which is located just behind the display and emergency stop button

The 45° angled print head, combined with the conveyor belt as one of the print axes, allows complex objects to be printed in series, in infinite length, or a mixture of both.

With the One Pro 3D Printer, your printed parts can have bionic features, be reinforced with resin, foam and fiber, and have optimized topology. That’s because our innovation-friendly One Pro 3D printer can print infinitely long hollow parts without support structures.

By choosing the Fused Filament Fabrication (FFF) for our One Pro 3D printer, it offers the widest variety of flexible applications. SMEs now have a cost-effective and fast way to produce elaborate and long items directly for their customers. But the One Pro also offers professional production readiness for durable and reliable serial production in consistent quality of your serial products.

Leave your competition behind with unbeatable per-unit manufacturing costs and products you can print flexibly, in high quality and in any quantity with the One Pro.

Studioaufnahme 3D-Fließband-Drucker von iFactory3D: One Pro bei Serienproduktion

One Pro, the world’s most advanced

3D Belt Printer

One Pro printer viewed from the side. The pyramid frame catches the eye, the red emergency button is a pop of color in an all dark set-up

Big Impact.
Small Footprint.

  • HIWIN linear rails for high precision & a long lifetime
  • E3D Hemera Direct-Drive is the leading extruder on the market
  • Custom iFactory3D Volcano Nozzle for high precision & speed
  • DUET mainboard for power & reliability
  • Repetier OS is easy to use & wide range of features

Contact us for advice on the benefits and your options with the One Pro!

Features

The One Pro 3D belt printer by iFactory3D printing an orthopedic insoles with flexible TPU material. The 45° angles print head provides softer edges, a smooth surface and less material is needed

Big impact. Small footprint.

  • Large print volume in a compact design
  • Supports up to 2.5kg spools with an integrated spool holder
  • Stepper motors on the back for a tidy appearance without disconnected cables
  • Printing of special materials possible through the coming enclosure
Close-up of a technical component in print on the One Pro 3D printer; printed with black iFactory3D PETG

Excellent print quality

  • CoreXY-System
  • Precise movement without distortion
  • GT2 belts can be individually tensioned for better printing results
  • Hard Y-stop to avoid nozzle crashes and protect the conveyor belt
  • Laser-cut aluminum parts for precision and consistent printing results

Simple change

  • Quick change of the conveyor belt due to removable precision rollers
  • Tool-free, uniform clamping system over the entire conveyor belt
  • Easy calibration with only four screws
Hot and cold zone on the conveyor belt print bed f the One Pro 3D printer: Temperature mesured fo cold zone is 25.6°C, for hot zone 58.9°C

Advanced functions

  • Floating build plate with a hot and cold zone to avoid deformation in long parts, covered by a borosilicate glass plate for perfect flatness.
  • A stepper motor with a gear ratio of 27:1 drives the front roller, eliminating the need for a GT2 belt that would sag, skip or need retensioning.

Construction volume

unlimited (L) x 280 (W) x 170 (H) [mm].
(unlimited (L) x 11 (W) x 6.6 (H) [inches])

Power consumption

AC 110-240V/ 50-60Hz 5A

Outer dimensions

620 (L) x 540 (W) x 380 (H) [mm]
(24.4 (L) x 21.3 (W) x 15 (H) [inches])

Output power (power supply)

DC 24V/14.6A

Printing technology

Fused Filament Fabrication (FFF)

Weight

18 kg (39.7 lbs)

Device type

45° FFF 3D conveyor belt printer

Resolution/height

0.4 mm nozzle: 0.1 – 0.25 mm
0.6 mm nozzle: 0.1 – 0.4 mm
0.8 mm nozzle: 0.2 – 0.6 mm
1.0 mm nozzle: 0.3 – 0.7 mm

Supply type

E3D Hemera Direct Drive Extruder

Nozzle diameter

0.4 mm Volcano nozzle as standard
Other (Volcano) nozzles available: 0.6 mm, 0.8 mm and 1.0 mm

Single printhead

Volcano Hotend

Belt

Durable polymer flow belt optimized for 3D printing

Material insert

1 kg spools can be placed inside, up to 2.5 kg spools outside with integrated, adjustable spool holder
> 2.5 kg possible via lateral filament feed (external bobbin holder required)

Compatible bobbin sizes

width: 50 – 100 mm
Diameter: 200 mm inside the printer, outside larger diameters possible

Compatible filament diameter

1.75 mm

Filament Material

PLA, PETG, TPU
With additional enclosure: PC, ASA, NYLON, ABS

Max. Nozzle temperature

285 °C (545 °F)

Operating ambient conditions

15 – 30 °C (59 – 86 °F), up to 70% relative humidity

Operating noise level

< 70 dBA

Nozzle warm-up time

< 2 minutes

Included software

Repetier Server (user interface and operating system)
DUET – Printer management software (for printer configuration change, operation)
IdeaMaker Slicer Software (Free Download: Raise3D)

Supported operating systems

Windows, Linux and Mac

Supported file formats for IdeaMaker

STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
Druckbare Formate: G, GCODE, GCODE.gz, UFP

Data transfer

USB stick or USB card reader
W-LAN (with installed single-board computer with Repetier server)

Monitoring

Wi-Fi Camera

Warranty period

12 months, except for wearing parts
(The warranty does not apply to the Belt).

Expert Support

Direct technical support via email, phone or from our global community is available in English and German.

Individual consulting

Tailor-made solutions for businesses, print farms and demanding projects

Printing service

Test printings to support the purchase decision as well as large printings realized in the in-house print farm are possible

Software

Quality

  • Repetier OS is user-friendly with a wide range of features
  • Print queue for fully automatic printing of multiple parts
  • Special functions for tape printers like baby steps for the Y-axis, cleaning of the tape, calibration of the tape and auto leveling
Image sequence of the various functions for operating the One Pro 3D printer via the PC, including language selection, 3D model preview, filament change, printer status, etc.

Security

  • Complete offline use possible
  • Works with: Windows, Linux and Mac operating systems
  • Camera for remote monitoring of the printer
Close-up of installed touchscreen display with user interface at One Pro 3D printer by iFactory3D

Functionality

  • Capacitive touchscreen with customizable interface and fast response time
  • Time-lapse videos with automatic image storage at predefined time intervals to document your print jobs
Scrolling through the available WLAN connections on the touchscreen display of the One Pro 3D printer from iFactory3D
